Tension Clamp PA-1000

Application in 25-35 mm2 one core LV abc cables;Corrosion resistant materials;Self-adjusting wedges, no tool required;Suitable for pole and wall mounted usage;Direct factory

Features

Application in 25-35 mm2 one core LV abc cables
Corrosion resistant materials
Self-adjusting wedges, no tool required
Suitable for pole and wall mounted usage
Direct factory

DESCRIPTION

TEST

REVIEW

Application

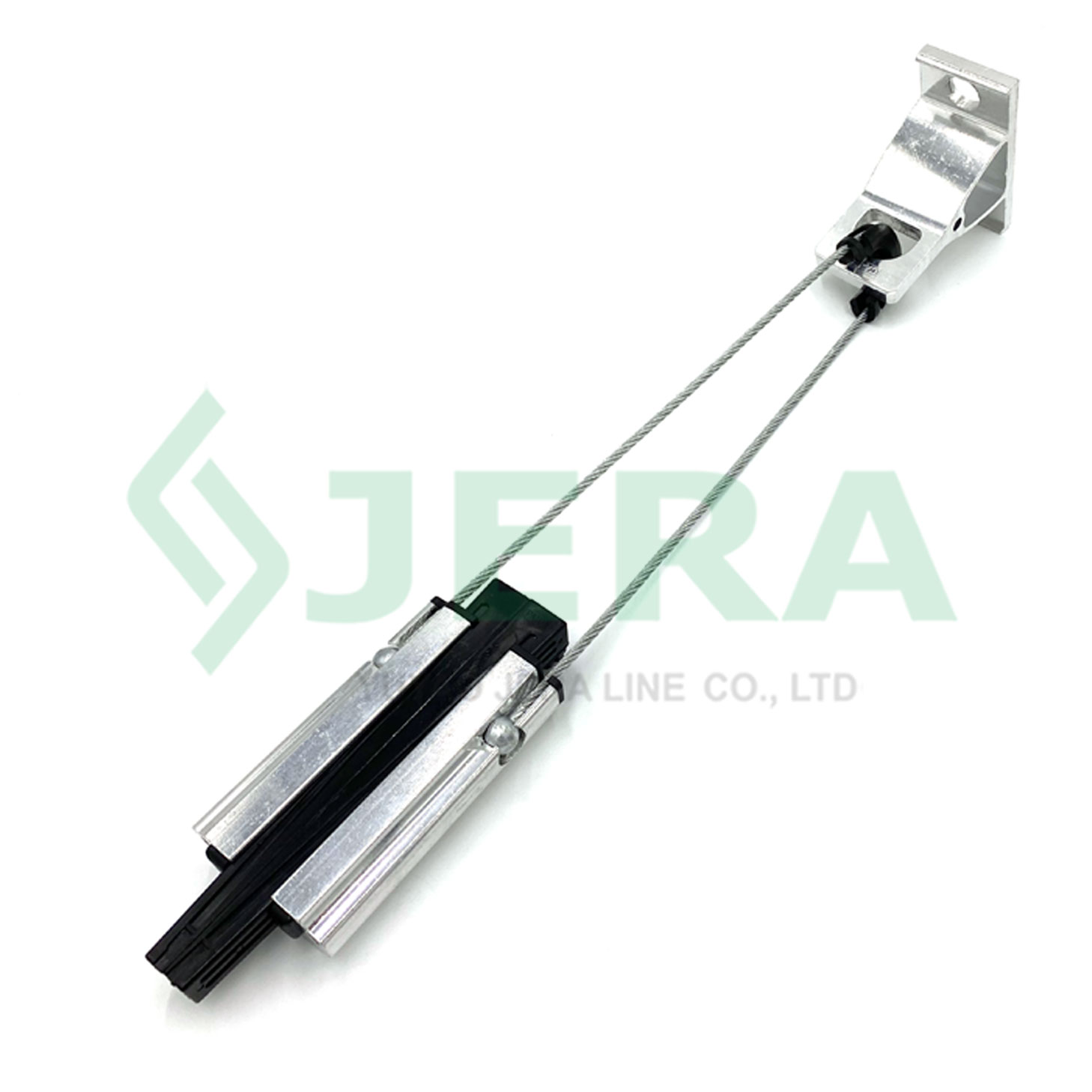

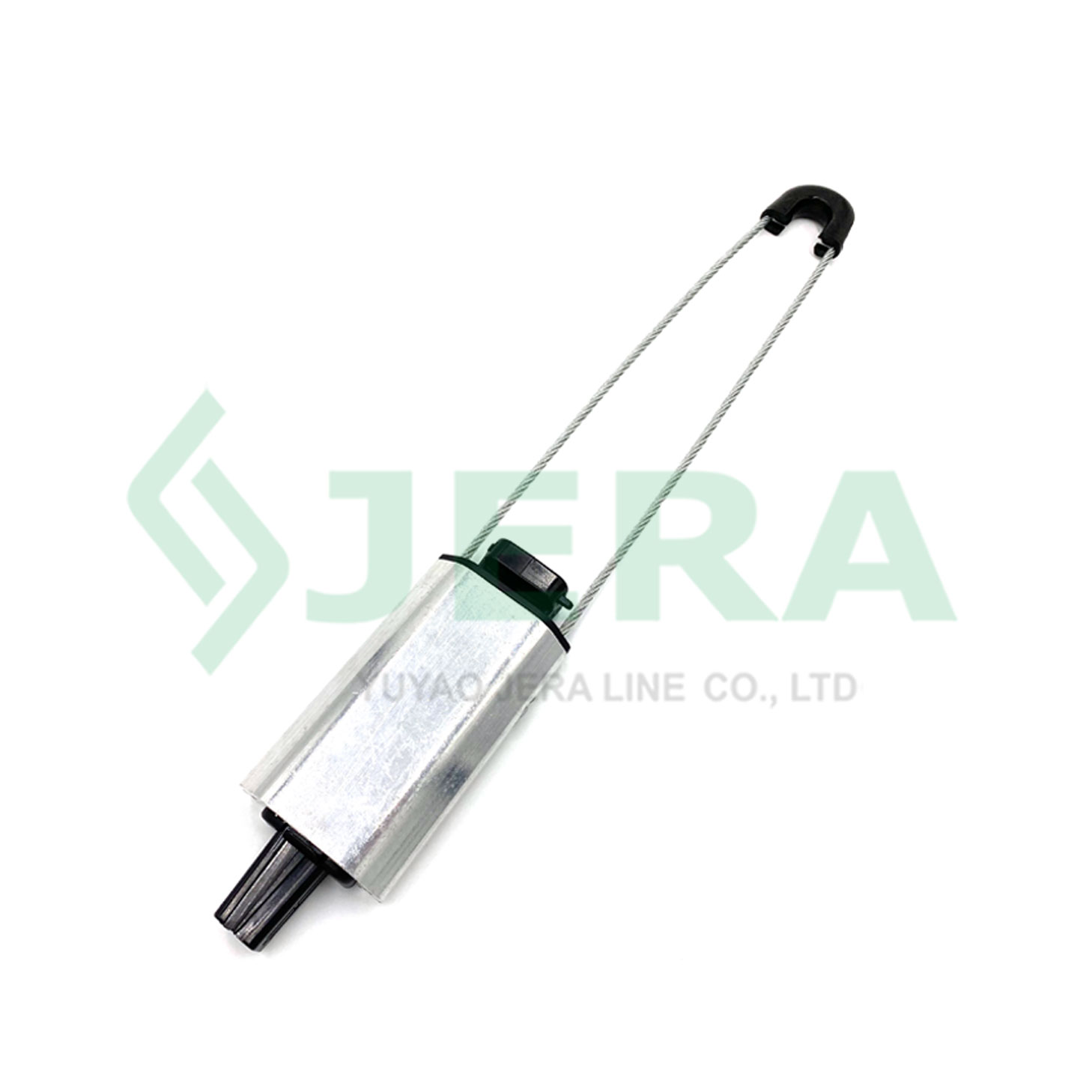

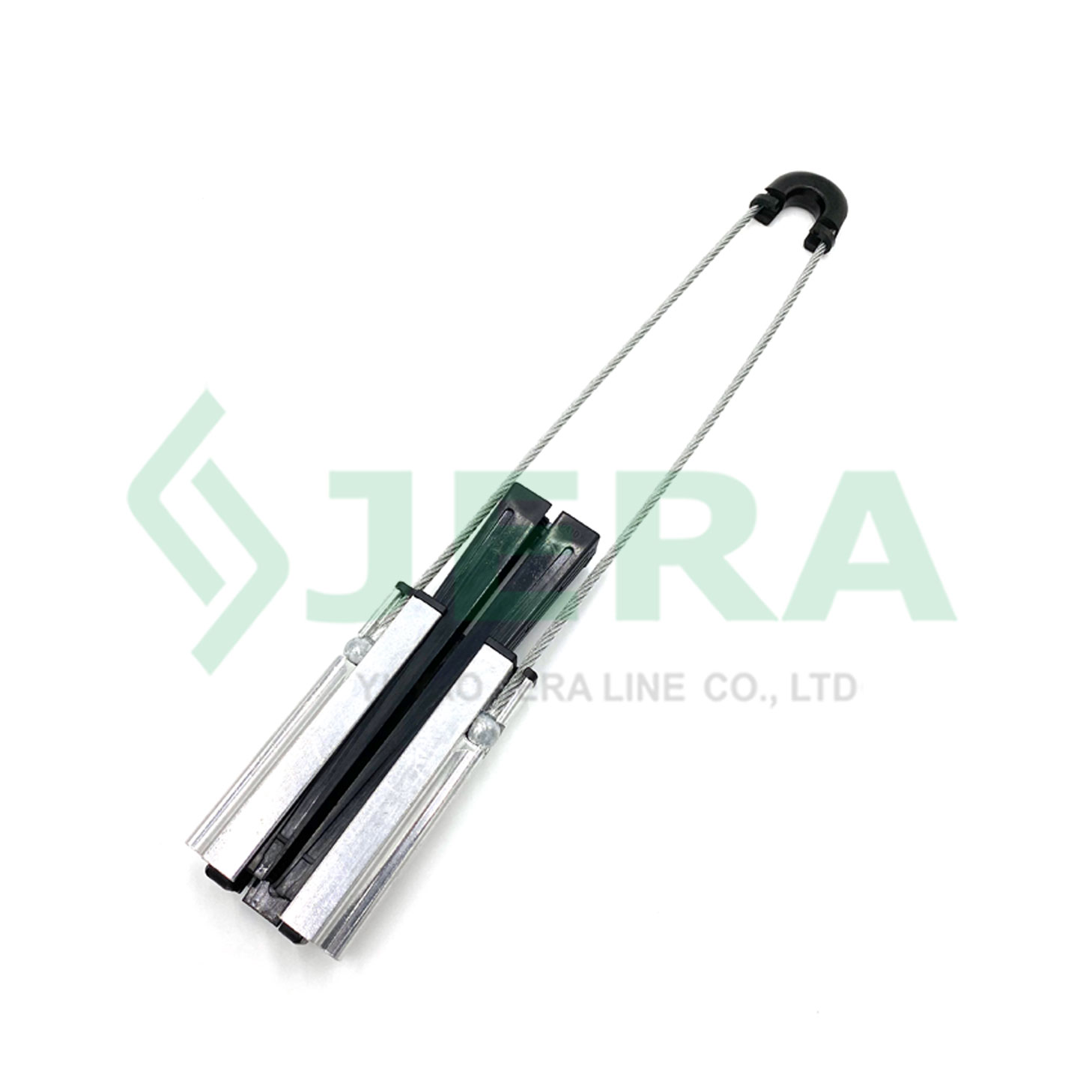

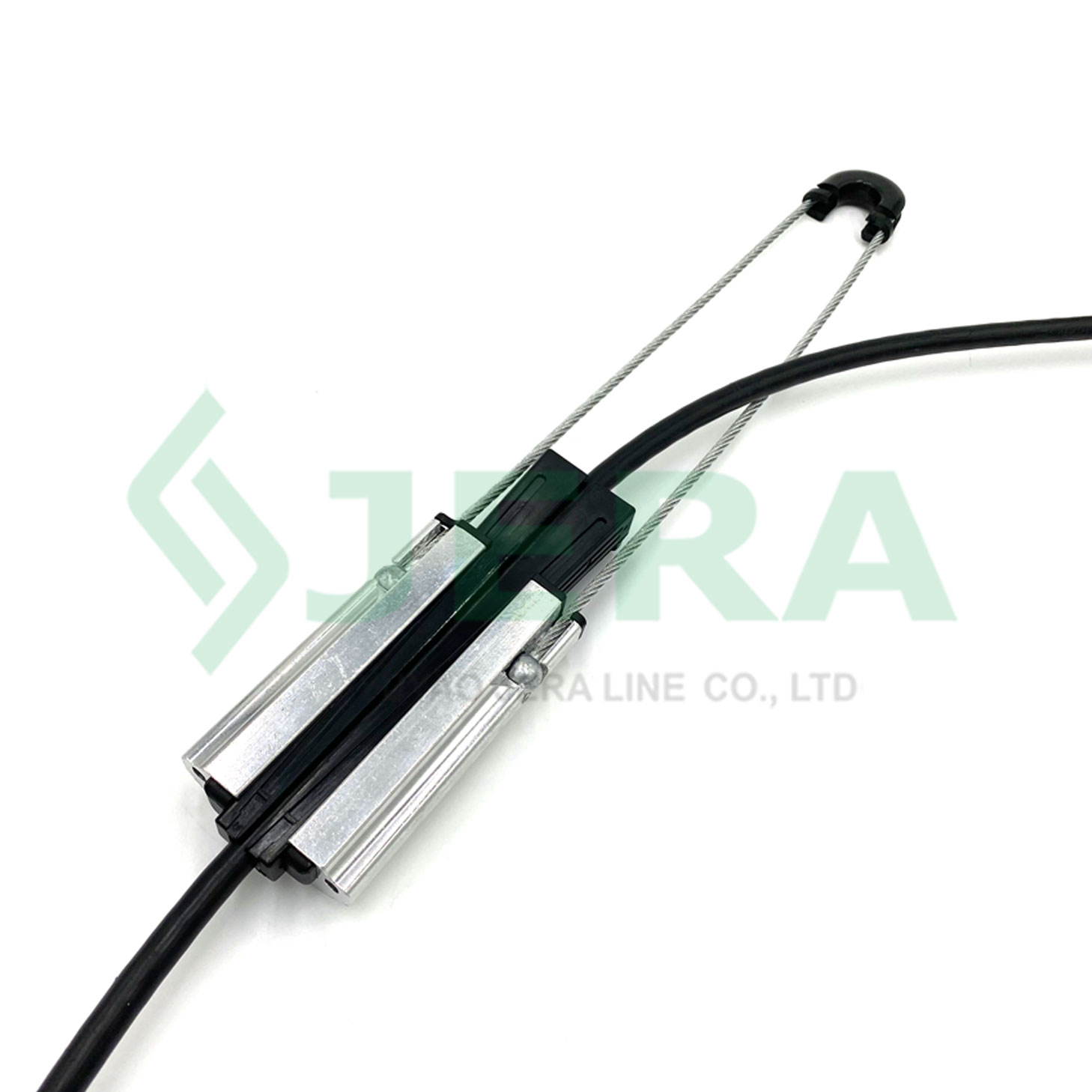

The power cable tension clamp PA-1000, also called abc dead end clamp, it has self-adjusting wedges, designed to anchor LV-ABC lines with insulated neutral messenger during outdoor aerial electrical line constructions, up to 1KV. AC.

Technical specification

Product code	Cable size, mm2	Minimum breaking load (MBL), KN
PA-1000	1 x 25-35	10

Components and materials

The ancoring clamp PA-1000, is manufactured by a Direct factory -- Jera Line with Quick production speed . The clamp consists of following main parts:

Components	Materials
Wire bail	Stainless steel wire + UV resistant U-groove
Body	Aluminum alloy outer shell
Wedge	UV resistant, fiberglass reinforced polymer
Wedge holder	UV resistant, fiberglass reinforced polymer
