Tin Covered Copper Bolt Mechanical Cable Lug CLBIT(H)-6-50

mechanical Terminal Lug, suit for 6-50 mm2 Aluminum and copper cable, tin plated copper bolt, Low voltage up to 1kv

Features

Universal shape of input hole, for solid and stranded cables
Made of tin covered aluminum body and tin covered copper bolt
Easy and operation, shear-head off the bolt by hex key
Wide cable application range 6-50mm2
Direct factory location in China

DESCRIPTION

TEST

REVIEW

Application

The Copper Shear Head Bolt CLBIT(H)-6-50, also referred to as a cable terminal lug with a shearing off driving head bolt, is specifically designed for use with aluminum or copper wire in electrical circuits operating up to 1 kV. The mechanical design of the lug ensures secure cable connections, making it a key component in cable jointing systems.

Key applications of tin-covered copper torque cable lug CLBIT(H)-6-50:

· Electrical Transmission and Distribution Lines

· Substation Equipment

· Grounding Systems

This product enhances the safety and reliability of electrical systems, especially in high-stress environments such as substations and transmission lines.

Technical specification

Product code	Cable size, mm2	Size of Bolt, M/hex size	Bolt number	Application cable
CLBIT(H)-6-50	6-50	14/14	1	Copper/Aluminum

Components and Materials

The Mechanical Aluminum torque Bolt cable Lug CLBIT(H)-6-50 is under Research and Design RnD by Jera Line, a direct factory location in China, it consists of the following main part:

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Copper, tin covered

Dimensions

Test

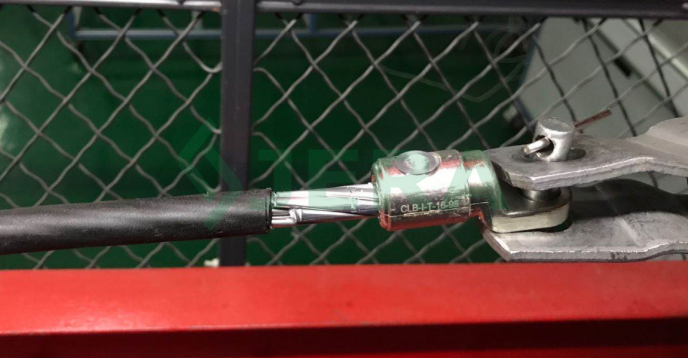

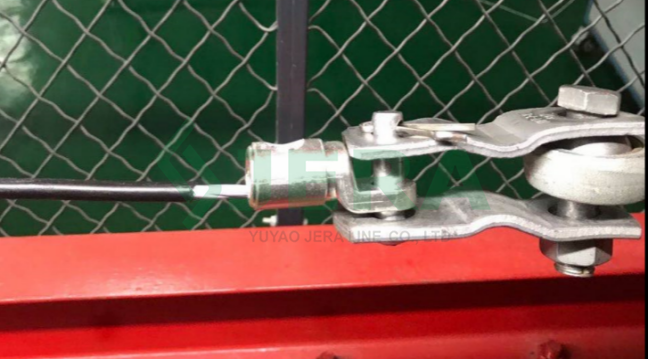

Shear-off-head bolts lug CLBIT(H)-6-50 has undergone rigorous Mechanical properties & performance validation by Laboratory Testing Equipments.

The use of a tensile strength machine at Jera Line laboratory, following the international standard IEC 61238-1-3, indicates a reliable assessment of the tensile strength of these bolts.
