When it comes to ensuring a safe, secure, and reliable electrical connection, the pre-insulated mechanical bolt cable lug is a crucial component in the world of electrical systems. Whether you're working with low-voltage or medium-to-high-voltage installations, these lugs are designed to provide a mechanical connection while also protecting against electrical hazards. In this blog, we'll take a closer look at what pre-insulated mechanical bolt cable lugs are, how they work, and why they're essential for electrical installations.
The importance of pre-insulated mechanical bolt cable lugs can’t be overstated, especially when dealing with electrical systems where safety, durability, and performance are paramount. Here are a few reasons why you should consider using these lugs:
1. Enhanced Safety
2. Reliability
3. Ease of Installation
4. Versatility
5. Corrosion Resistance
Pre-insulated mechanical bolt cable lugs are used in a wide variety of applications, including:
● Industrial Electrical Systems: In power distribution panels, switchgear, or electrical panels.
● Energy Generation and Transmission: For connecting cables to transformers, generators, and high-voltage lines.
● Building Wiring: In residential and commercial electrical installations, particularly where secure and insulated connections are needed.
● Renewable Energy: In solar and wind power systems, where reliable electrical connections are vital.
● Marine and Offshore: In environments subject to moisture and corrosive conditions, such as ship electrical systems or offshore oil platforms.
To ensure the best performance, it’s essential to choose a high-quality pre-insulated mechanical bolt cable lug that suits your application. Consider the following factors when selecting a lug:
1. Conductor Size: Make sure the lug is compatible with the size of the conductor you're working with.
2. Voltage Rating: Verify that the lug is rated for the voltage levels of your system.
3. Environmental Conditions: Select a lug made from corrosion-resistant materials if the installation is in a harsh environment.
4. Bolt Size: Ensure that the bolt size matches the equipment where the lug will be terminated.

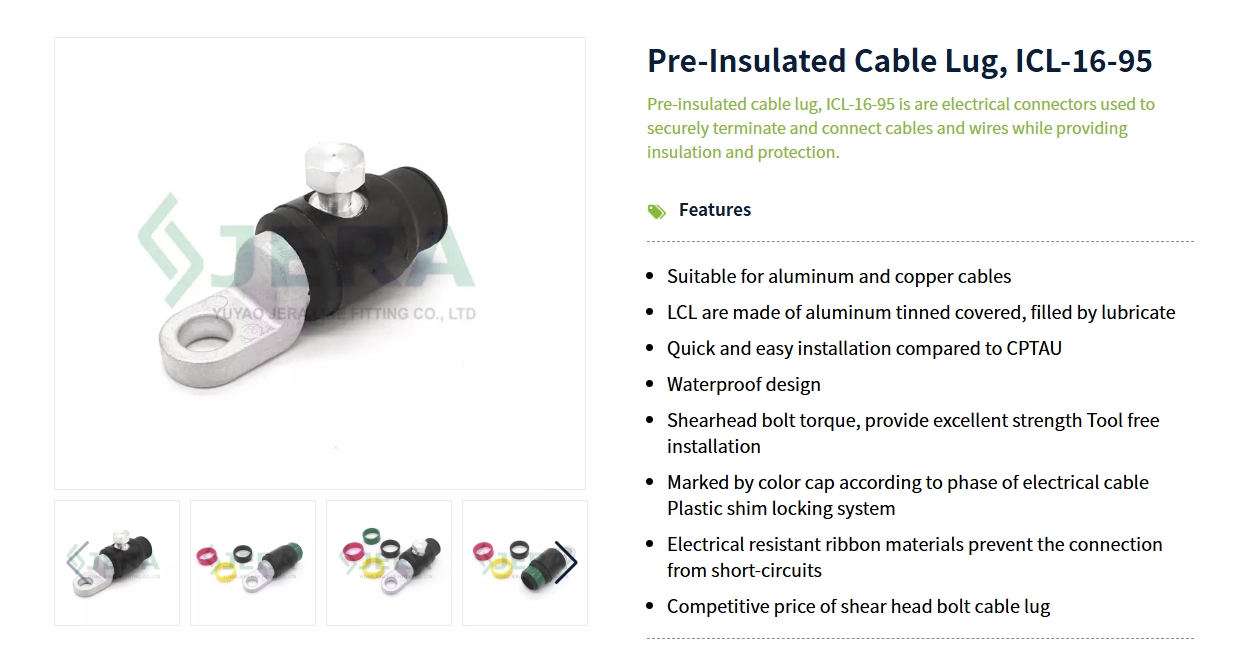

Jera line suggests ICL-16-95, and when it comes to electrical installations, ensuring safety, reliability, and durability is of utmost importance. Whether you're engaged in residential, commercial, or industrial applications, the quality of the connections you establish can greatly influence the overall performance and safety of the system. That's why we strongly advocate the use of Pre-Insulated Mechanical Bolt Cable Lugs for your subsequent electrical projects.
How to terminate electrical power cable by pre-insulated mechanical bolt cable lug
Terminating an electrical power cable with a pre-insulated mechanical bolt cable lug involves a few straightforward steps. These lugs are designed to ensure a secure and reliable connection, typically for use in low, medium, and high-voltage power cables.
● Inspect the cable: Make sure that the cable is the correct size and type for your application.
● Strip the cable: Use a cable stripping tool to carefully remove the outer insulation of the cable, exposing the inner conductors. Be sure not to damage the copper wire or the insulation of the individual conductors.
● Clean the conductor: If necessary, clean the exposed copper conductor to remove any dirt, oxidation, or contamination. This can help improve the quality of the connection.
● Choose a pre-insulated mechanical bolt cable lug that matches the size of the conductor. The lug should be able to fit the cable securely without excessive space, but not be too tight.
● Insert the stripped cable end into the barrel (the part of the lug where the conductor will sit).
● The conductor should fit snugly inside the barrel of the lug without any gaps. The copper should be fully inside the barrel, ensuring a solid connection.
● Some mechanical lugs come with a crimping feature. If the lug has a crimping area (a small indentation on the barrel), use a crimping tool to firmly crimp the conductor into the lug. This creates a mechanical bond and ensures electrical conductivity.
● Make sure that the crimp is solid but not overdone to the point of damaging the conductor.
● Once the conductor is inside the lug, align the hole of the lug with the bolt or stud where the cable will be terminated.
● Insert the bolt and tighten it using a wrench or socket. Make sure the connection is tight enough to provide a good mechanical bond, but be careful not to over-tighten, as this can damage the lug or conductor.
● If using a torque wrench, follow the manufacturer's recommended torque value for the bolt to ensure the proper mechanical strength of the connection.
● After tightening, ensure that the insulation on the lug covers any exposed copper or conductive parts of the cable.
● If the pre-insulated lug is not fully covering the conductor, use electrical tape to cover any exposed parts of the wire to prevent accidental short circuits or electrical shocks.
● Some pre-insulated lugs have a heat-shrinkable or adhesive insulation, so ensure that it is fully secure.
● Inspect the connection to ensure that the conductor is firmly seated in the lug and that the lug is properly tightened.
● Verify that the insulation on the lug covers the appropriate portions of the conductor, and that there is no exposed copper.
● Double-check the torque of the bolt to ensure it is within the recommended limits.
By following these steps, you should be able to successfully terminate your electrical power cable using a pre-insulated mechanical bolt cable lug, ensuring a safe and reliable connection.
