Wheel Type Banding Tool, MBT-003

Wheel Type Banding Tool, MBT-003, also called steel band tensioning tool

Features

Easy operation.
Rust resistant material, guarantee long time usage.
Itself with built band cutter, no need other tools.
Spring loaded gripper lever increase ease of use.
Good environment stability.
Fair price.

DESCRIPTION

TEST

REVIEW

Application

Stainless steel strap banding tools usually used together with stainless steel band and buckle, they are widely used in most industries.designed to tension stainless steel straps with buckle and fix fittings on wooden, metal, concrete pole during aerial electrical line constructions. This tool is equipped with a special blade for easy cutting the stainless steel band.

Technical specification

Code	Max band width (mm)	Max band thickness (mm)	Weight	Material
MBT-003	20	0.8	1.8KG	Electro galvinized steel

Components and materials

Steel band strapping tool mbt-003 is made of high quality carbon steel and all surface processed with cold galvanized finish which is rust resistant and guarantee long period usage.

This wheel banding tool equipped a special blade by itself and it no need other tools during installation, all the tensioning and cutting work can be finished by this tool. Related stainless steel straps and stainless steel buckles are also available in jera line product group.

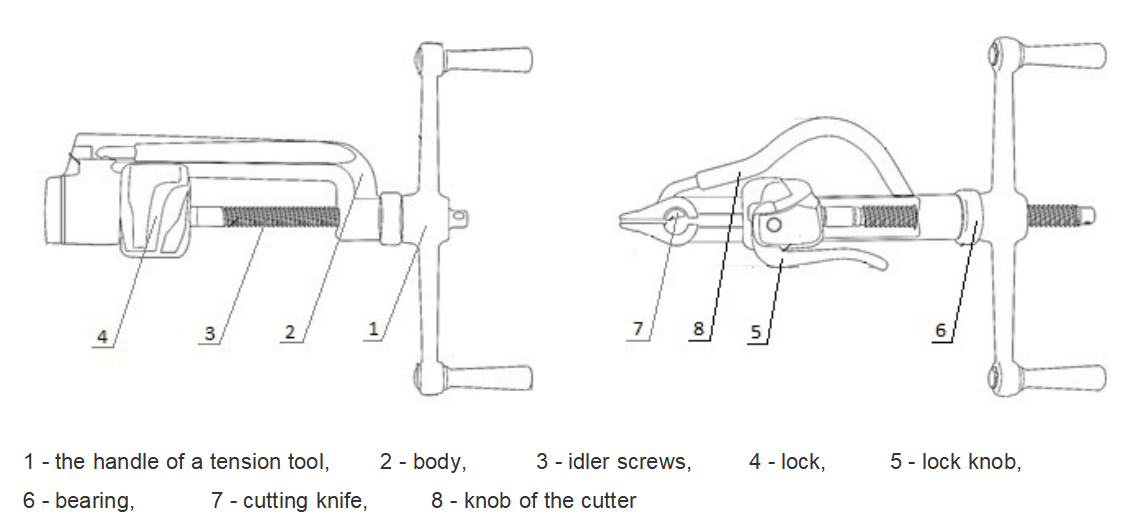

Dimensions

Test

Jera line is operating according to ISO 9001:2015, we have our own laboratory to proceed a series test accordance with European quality inspection standards.
