The product adopts bolt type connection, without professional crimping tools, socket wrenches, Easy to install, easy to operate.
Fixed torque shear bolt, no damage to the cable conductor, product performance is stable.
Product built-in gasket, through the selection of gasket, can be applied to different specifications of cables, reduce inventory, convenient management.
Aluminum tube coated with conductive paste, anti-oxidation, anti-corrosion, prolong the service life of the product.
The product adopts friction welding technique to realize the transition connection of copper and aluminum, and electrochemical corrosion can be caused by the connection of different materials.
Technical specification
Product code
Cable size, mm2
Torque, N*m
Bolt number
Application cable
CCBVzT-36-8-630-1000
630-1000
78/84
8
Copper/Aluminum
Components and materials
Common surface treatment
1 . Pickling , the acid-washed color and the original color of the red copper are basically the same ,which can maintain nice appearance , anti-oxidant , and more conductive to electricity .
2 . tin-plated , the surface of tin-plated copper lug is silver-white , which can better prevent oxidation and conduct electricity , and can prevent the diffusion of harmful gases generated by copper during the conductive process
Aluminum Torque Electrical Connector CCBVzT-36-8-630-1000 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the MV mechanical connector consists of the following main part:
Components
Materials
Body
Aluminum alloy, tin covered
Shear off torque bolts
Aluminum alloy
Compensating size ring
Aluminum alloy tin covered

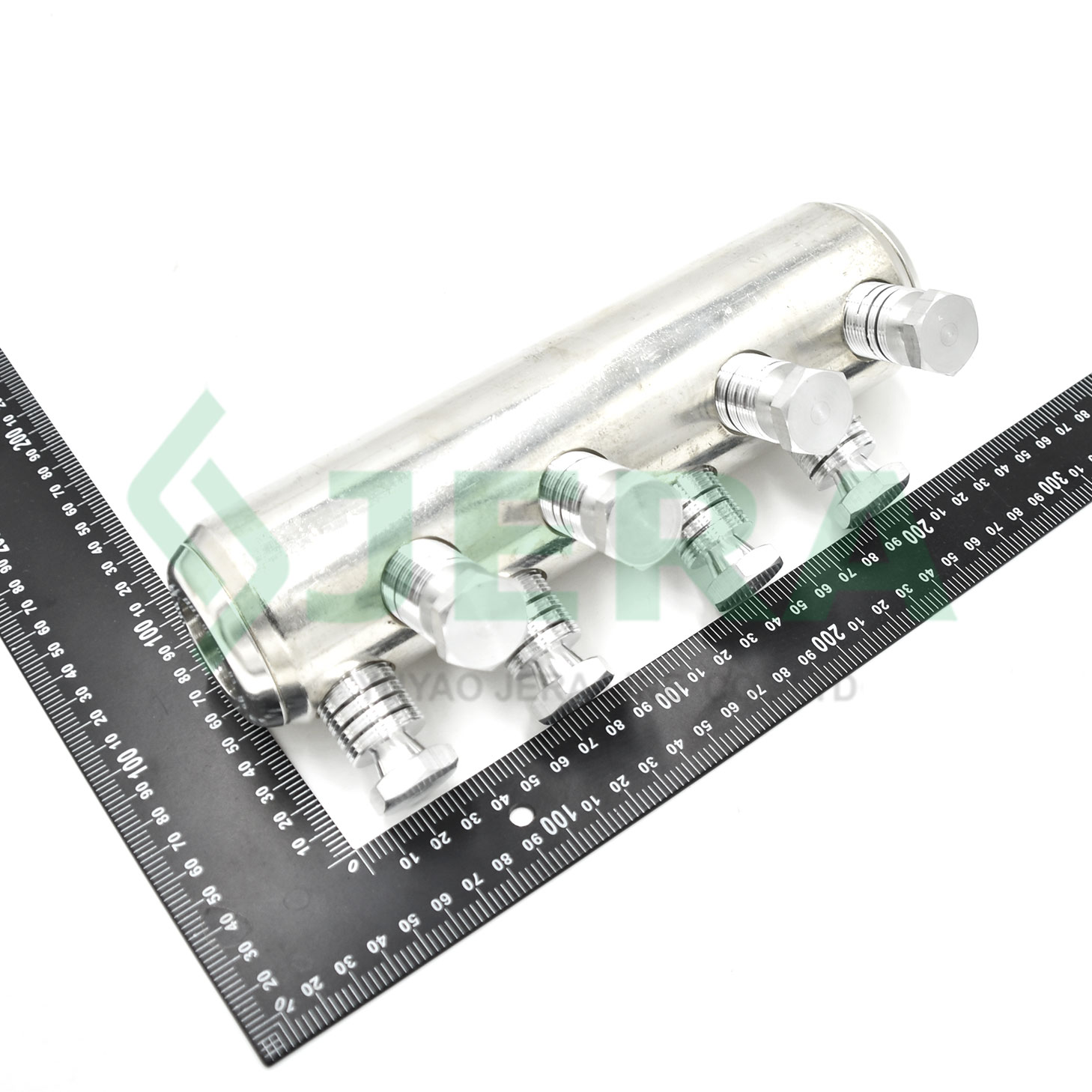

Dimensions
Test
Mechanical Shear Bolt Electrical Lug CLBVzT-36-4-630-1000 has passed routine test by Jera Line own factory laboratory, if the test report required, Jera Line can provide factory test report which according to standard IEC-61238-3.
We do the following test:
· Visual inspection test and dimensional and material verification test
·Mechanical tension test according to standard IEC 61238-1-3
·Shear head functions test according to standard IEC 61238-1-3
